EC AXIAL FAN Series
SIZE:φ630mm
关键字:
hiddenValue
- Description
-
General Specifications
• Motor:Shaded Pole
• Frame & Impller: Aluminum Die-casting ADC-12
• Operating temperature: -20°to + 105°Major Characteristic Parameters
Specifications
Model
Rated Voltage
Operating
Voltage range
Current
Rated Current
Power
Speed
Air Flow
Air Pressure
Noise
Part NO.
V
V
HZ
A
W
R.P.M
CFM
M³/h
mmh2o
Pa
dB.A
WAD630HG380B
380
380-460
50-60
4.7
2700
1250
10617.6
18050
90.72
890
85
·Bearing system B: Two Ball Bearing F:Fluild Bearing S:Sleeve Bearing

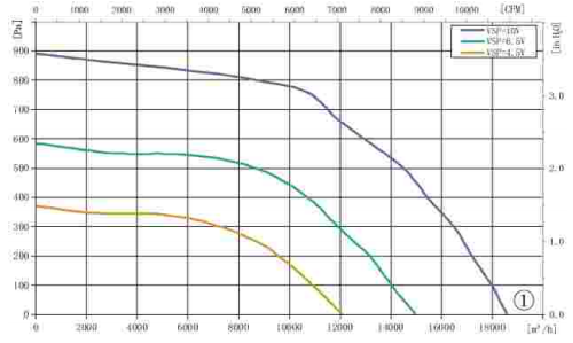

Air Flow and Static Pressure acteristics

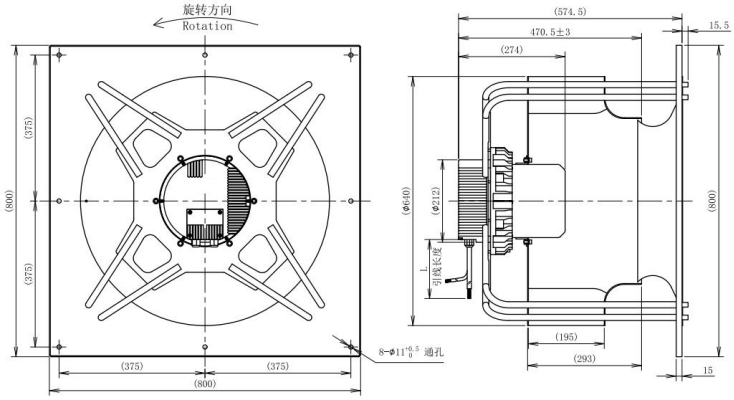

Unit:mm
